- Place of Origin: xuzhou
- Brand Name: XCMG wheel loader
- Model Number: XCMG Wheel loader LW900KN
- Weight: 9000.000 kg
Summary

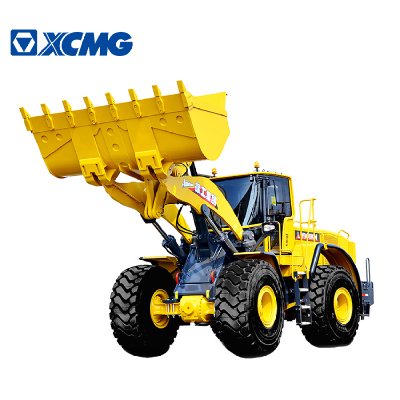

XCMG Official LW900KN Wheel Loader for sale_wheel loader
Rated Load:9000kg
Dimension(Long* Breadth * High):9500×3500×3845mm
Place of Origin:China
Model Number:LW900KN
Brand Name:XCMG
Certification:ISO9001
Details
XCMG Official LW900KN Wheel Loader for sale_wheel loader
Product Name:G5ACDC33D7BBEB
Display online time:2018-11-21
weight:31000.000kg
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:wheel
Advantage
1,The latest integrated FOPS & ROPS ultra-low-noise cab features European/American mainstream style and super-large space and integrates the world’s most advanced technologies nowadays to reach the world-class level and realize higher safety, broader visual field, and better operating comfort.
2,The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.
3,The extended wheelbase heavy-load design and the structural parts analyzed and optimized by 3D simulation meet the operation needs under severe working conditions.
4,The load-sensing variable technology is applied to supply the oil pressure and flow depending on the working needs, which greatly improves the utilization efficiency of fuel.
5,The independent single-row radiator system with large fin spacing is applied to thoroughly solve the thermal balance difficult during operations under diversified severe environments.
- Place of Origin: xuzhou
- Brand Name: XCMG wheel loader
- Model Number: XCMG Wheel loader LW900KN
- Weight: 9000.000 kg
Desicription | Parameters | Unit |
Wheel base | 3600 | mm |
Wheel tread | 2460 | mm |
Dump clearance at maximum lift | 3400 | mm |
Minmum ground clearance | 520 | mm |
Reach at maximum lift | 1400 | mm |
Overall machine dimension L×W×H | 9500×3500×3850 | mm |
Rated operating load | 9000 | kg |
Bucket capacity | 5 | m³ |
Machine weight | 30400 | kg |
Max.breakout force | 260 | kN |
Total hydraulic cycle time | 11.5 | s |
Min.turning radius overtyres | 6300 | mm |
Articulation angle | 38 | ° |
Gradeability | 25 | ° |
Tyre size | 29.5R25 | |
Engine Model | CummnisQSM11 | |
Rated Power/speed | 250/2100 | kW/rpm |
Travel speedⅠ-gear(F/R) | 7/7 | km/h |
Travel speedⅡ-gear(F/R) | 11.6/11.6 | km/h |
Travel speedⅢ-gear(F/R) | 24.5/24.5 | km/h |
Travel speeIV-gear(F) | 35.5 | km/h |
LW900KNwheel loader operator job vacancy in china electric skid steer loader
With large space, broad visual field, high sealing performance, air cushioned seat, adjustable steering column, and heating and air conditioning, the cab provides a quiet and dust-free working environment with appropriate temperature and low vi
bration to yo u.Noise around ears of op erator: <75dB (A)
The adjustable clutch system with adjustable traction force is equipped to ensure stable deceleration,reduce the gearshift impact, and achieve driving comfort.
The load-sensing variable technology is adopted to supply press ure and flow depending on the working needs, which greatly improves the power utilization efficiency by 15%.
With total cycle time less than 11.5s, the hydraulic system features high working efficiency.
The cab ad opts built-in framework structu re to protect against rollover and falling objects.
Energy-saving and high efficiency hydraulic system XCMG new FOPS&ROPS pressurized cab
The world’s leading full-automatic electronic control transmission is equipped,with four-forward and three-reverse ears, automatic/manual mode switchover function, and KD gear function.
The world’s leading wet-type brake axle is equipped, featuring high carrying capacity and compact structure. The front axle incorporates the differential locking function.
The intelligent independent radiator system equipped can realize the on-demand distribution of fan speed and improve the power utilization by 5%.Energy-saving and high efficiency hydraulic system. The reversing camera system is equipped to reduce
the rearview blind zones and improve the working safety.
Adjustable clutch system Reversing camera
With large space, broad visual field, high sealing performance, air cushioned seat, adjustable steering column, and heating and air conditioning, the cab provides a quiet and dust-free working environment with appropriate temperature and low
