Product Description

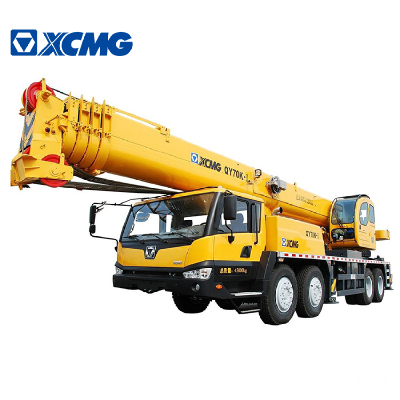

XCMG QY70K-1 70 ton rc Chinese mobile truck mounted crane price for sale
High-power air-conditioner meets the requirements of T3 working condition
High-power air-conditioners are equipped in driver' s cab and operator' s cab, heat transferring area of condenser is increased by 75%, displacement of compressor is increased by 20%, refrigeration effect is improved by above 25% relative to regular products, which meets the requirements of T3 working condition.
Hydraulic heat radiation system with superpower, permissible ambient temperature exceeds 55℃
The layout mode of oil port of radiator is optimized, heat radiating area of core is increased by 50%, radiation power of hydraulic oil radiator is improved from 10kW to 18kW, permissible ambient temperature exceeds 55℃, which meets the requirements for high temperature operation.
High-temperature resistant and ageing resistant wiring harness, service life covers product lifecycle
The protecting ply of wiring harness is produced according to QC/T29106-2004 Technical Conditions of Automobile Low-voltage Wiring Harness, heat-resistant temperature is increased to 105℃, corrugated pipes are added for protection, protection class of plug-ins is IP67. The service life in high temperature operation exceeds 15 years.
- Place of Origin: xuzhou
- Brand Name: XCMG truck crane
- Model Number: truck crane
- Weight: 70000.000 kg
Specifications
| Description | Unit | Parameter value | |
| Overall length | mm | 13900 | |
| Overall width | mm | 2800 | |
| Overall Height | mm | 3575 | |
| Axle base | 1st ,2nd axle | mm | 1470 |
| 2nd ,3rd axle | 4105 | ||
| 3rd ,4th axle | 1350 | ||
| Wheel Base | mm | 2304 2075 | |
| Total vehicle mass in travel configuration | kg | 43000 (not including auxiliary counterweight of 1t) | |
| Axle load | 1st and 2nd Axle | kg | 17000 |
| 3rd and 4th Axle | 26000 | ||
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1400 | |
| Engine rated rotational speed | r/min | 2100 | |
| Max. travel speed | km/h | 80 | |
| Min. steady travel speed | km/h | 3 | |
| Min. turning diameter | m | 24 | |
| Min. turning diameter at boom tip | m | 29 | |
| Min. ground clearance | mm | 327 | |
| Max. grade ability | % | 40 | |
| Approach angle | ° | 19 | |
| Departure angle | ° | 11 | |
| Braking distance (at 30 km/h, full load ) | m | ≤10 | |
| Oil consumption per 100km | L | 45 | |
