- Size: 6220/2430/3200mm
- Place of Origin: xuzhou
- Brand Name: XCMG road roller
- Model Number: road roller
- Weight: 22000.000 kg
Product Description

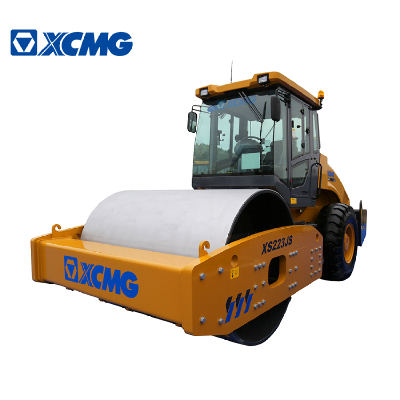

XCMG Ofiicial road roller 22tons XS223J Single Drum Vibratory Roller
The XS203J/XS223J/XS223JE is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG’s new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.
Excellent Powertrain
The six-cylinder, direct injection, water-cooled, turbocharged Shangchai D6114ZG engine that offers high power reserve, together with the electrically controlled power box and the optional drive axle with NO-SPIN function supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.
Outstanding Compaction
Dual vibration frequencies and dual amplitudes satisfy different jobsite requirements. Imported heavy-duty piston pumps and motors form a closed circuit to provide enhanced durability and reliability, ensuring uniform compaction. Largest diameter drum and highest static linear load of its kind in china coupled with optimized drum structure and vibration parameters work together for outstanding compaction result and great productivity.
Reliable Electrical System
The electrical system adopts internationally sourced water-proof, dust-proof, vibration-resistant electric connectors for increased reliability.Imported maintenance-free battery has high start-up current and good adaptability.
All-round Safety Consideration
Independently actuated caliper disc type service brakes and band type parking brakes assure safe and reliable braking.
Ant-slip handrail and stairs allow the operator to get on and off the machine freely.
During machine transportation, an articulated locking device can be used to lock the front and rear frame for safe transportation.
High Reliability
Advanced brake and clutch protection system protect the clutch and transmission against damages caused by operation mistakes.
Integrating over forty years’ experience in production, manufacturing and design, XCMG rollers have always been taking the lead in reliability in china’s roller industry.
Comfortable Operation
Electrohydraulic controlled power shift transmission and electrically controlled engine hood make operation easy. The main clutch and braking system are air actuated, offering the ease of operation.
Ergonomically designed instrument panel and simple ergonomic layout of controls minimize fatigue, making the operator highly efficient and productive.
Serviceability
Wide-opening tilt-forward engine hood can be stopped safely at any height using an electric lift device, allowing easy access to the engine for maintenance and service.Grease fill and drain ports are easily accessible for easier daily maintenance.
- Size: 6220/2430/3200mm
- Place of Origin: xuzhou
- Brand Name: XCMG road roller
- Model Number: road roller
- Weight: 22000.000 kg
| Type | Unit | XS223J |
| Operating weight | kg | 22000 |
| Load on front drum | kg | 15000 |
| Load on rear wheels | kg | 7000 |
| Drum width | mm | 2130 |
| Static linear load | N/cm | 704 |
| Vibration frequency(Low/High) | Hz | 28/33 |
| Nominal amplitude(High/Low) | mm | 1.86/0.93 |
| Excitation force(High/Low) | KN | 390/270 |
| Travel speed | km/h | 0~10 |
| Steering angle | ° | ±33 |
| Swing angle | ° | ±10 |
| Theoretical gradeability | % | 50 |
| Min. external turning radius | mm | 6500 |
| Engine model | B5.9 | |
| Engine power | kw | 132 |
| Rated engine speed | r/min | 2200 |
| Engine oil consumption | g/kW.h | 232 |
| Hydraulic oil tank capacity | L | 240 |
| Fuel tank capacity | L | 240 |
1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
