Summary
Dimension(L*W*H):7795×2525×2880mm
Weight:13200kg
Model Number:XE135D
Brand Name:XCMG
Place of Origin:China
Power Type:Diesel
Type:Crawler Excavator
Certification:CE/ISO9001
Details

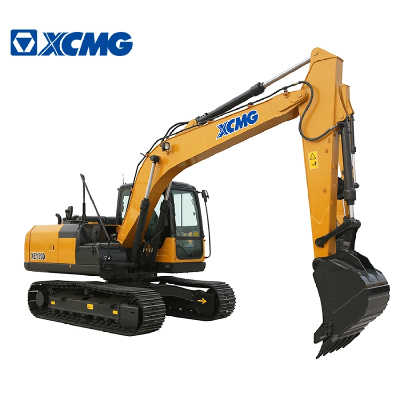

Product Name:XE135D
Display online time:2018-11-21
weight:13200.000kg
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:crawler
Operating weight:13200Kg
Bucket capacity:0.32~0.61m³
Rotating speed:11r/min
Ground pressure:42kPa
Bucket digging force:99.1kN
Max. digging height:8638mm
Max. dumping height:6174mm
Max. digging depth:5546mm
Max. digging reach:8304mm
Min. swing radius:2445mm
Advantage
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
- Place of Origin: xuzhou
- Brand Name: XCMG excavator
- Model Number: XCMG Excavator
- Weight: 13000.000 kg
| Description | Unit | Parameter value | |||
| Operating weight | kg | 13200 | |||
| Bucket capacity | m³ | 0.32~0.61 | |||
| Engine | Model | cammins | |||
| QSF3.8 | |||||
| Style | Direct injection | --- | √ | ||
| Four strokes | --- | √ | |||
| Water cooling | --- | √ | |||
| Turbo-charging | --- | √ | |||
| Air to air intercooler | --- | √ | |||
| No. of cylinders | --- | 4 | |||
| Output power | kW/ r/min | 86/2200 | |||
| torque/speed | N.m | 470/1300 | |||
| Displacement | L | 3.76 | |||
| Main performance | Travel speed(H/L) | km/h | 5.2/2.9 | ||
| Gradeability | % | 70 | |||
| Rotary speed | r/min | 11 | |||
| Ground pressure | kPa | 42 | |||
| Bucket digging force | kN | 99.1 | |||
| Arm digging force | kN | 68 | |||
| Hydraulic system | Main pump | -- | T5V63DP | ||
| Rated flow of main pump | L/min | 2×125.4 | |||
| Main safety valve pressure | MPa | 31.4/34.3 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Oil Capacity | Fuel tank capacity | L | 260 | ||
| Hydraulic tank capacity | L | 105 | |||
| Engine oil capacity | L | 11 | |||
| Appearance size | Overall length | mm | 7795 | ||
| Overall width | mm | 2525 | |||
| Overall height | mm | 2880 | |||
| Width of platform | mm | 2490 | |||
| Length of crawler | mm | 3648 | |||
| Overall width of chassis | mm | 2490 | |||
| Width of crawler | mm | 500 | |||
| Wheel base of crawler | mm | 2918 | |||
| Crawler gauge | mm | 1990 | |||
| Clearance under counterweight | mm | 931 | |||
| Min. ground clearance | mm | 466 | |||
| Min. rear-end swing radius | mm | 2325 | |||
| Working scope | Max. digging height | mm | 8638 | ||
| Max. dumping height | mm | 6174 | |||
| Max. digging depth | mm | 5546 | |||
| Max. digging depth at the range of level 8 feet | mm | 5335 | |||
| Max. vertical wall digging depth | mm | 4698 | |||
| Max. digging reach | mm | 8304 | |||
| Min. swing radius | mm | 2445 | |||
| Worker | Standard | Length of boom | mm | 4600 | |
| Length of arm | mm | 2520 | |||
| Bucket capacity | m³ | 0.52 | |||
| Optional | Length of boom | mm | |||
| Length of arm | mm | 2100/3010 | |||
| Bucket capacity | m³ | 0.32/0.4/0.61 | |||
