- Place of Origin: xuzhou
- Brand Name: XCMG wheel loader

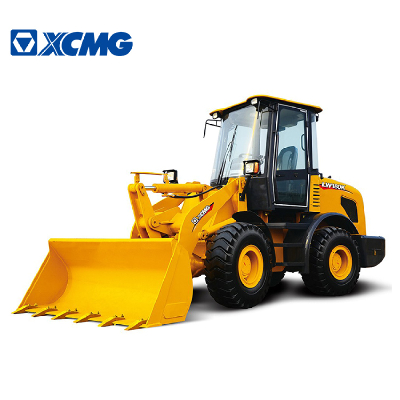

- Model Number: XCMG Official LW180K Wheel Loader
- Weight: 1800.000 kg
Summary
Rated Load:1800
Type:Front Loader
Place of Origin:China
Model Number:LW180K
Brand Name:XCMG
Certification:CE/ISO9001
Dimension(Long*Breadth*High):5980x2060x2950mm
Details
Product Name:LW180K
Display online time:2018-12-21
weight:6200.000kg
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:wheel
Rated operating load:1800kg
Bucket capacity:0.9~1.1m³
Machine weight:6200kg
Dump clearance at maximum lift:2650~2970mm
Reach at maximum lift:900~1000mm
Wheel base:2300mm
Tread:1550mm
Max.breakout force:≥58kN
Engine Model:YC4D80-T20
Rated Power:58kW
Rated Speed:2400rpm
Tyre specification:16/70-20
Advantage
1,The streamline exterior, large-view glasses, and arc ballast feature beautiful modeling and are in line with international mainstream level.
2,The extended wheelbase (2,300mm) design applied adapts to diversified super-heavy working conditions, with the stability leading the industry.
3,The engineering version leading Yuchai engine for small-sized loaders features China-II emission compliance.
4,The special high capacity torque converter ensures the maximum utilization of engine power.
5,The super-large luxury cab (1,550mm in longitudinal length) features large space and good visibility.
- Place of Origin: xuzhou
- Brand Name: XCMG wheel loader
- Model Number: XCMG Official LW180K Wheel Loader
- Weight: 1800.000 kg
| Description | Unit | Parameter value | |
| Rated operating load | kg | 3000 | |
| Bucket capacity | m³ | 0.9 ~ 1.1 | |
| Machine weight | kg | 10900±200 | |
| Dump clearance at maximum lift | mm | 2770 ~ 3260 | |
| Reach at maximum lift | mm | 1010 ~ 1210 | |
| Wheel base | mm | 2900 | |
| Tread | mm | 1850 | |
| Height of hinge at maximum lift height | mm | 3830 | |
| Working height(fully lifted) | mm | 4870 | |
| Max. breakout force | kN | 130 | |
| Max. horse power | kN | 95 | |
| Hydraulic cycle time-raise | s | 5 | |
| Total hydraulic cycle time | s | 9.3 | |
| Min. turning radius over tyres | mm | 5170 | |
| Articulation angle | ° | 38±1 | |
| Gradeability | ° | 28 | |
| Tyre size | 17.5-25-12PR | ||
| Overall machine dimension L×W×H | mm | 7245×2482×3320 | |
| Model | WP6G125E201 | ||
| Emission standards | Emission 2 | ||
| Rated Power/Speed | kW/rpm | 92/2000 | |
| Fuel Tank | L | 170 | |
| Hydraulic Tank | L | 175 | |
| Travel Speed | I -gear(F/R) | km/h | 12/16 |
| II -gear(F/R) | km/h | 38/- | |
