XCMG Official GR180 190HP new brand motor grader made in China with CE price for sale

XCMG Official GR180 190HP new brand motor grader made in China with CE price for sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao , Shanghai, Tianjin
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-11-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  xuzhou
  • Brand Name:  XCMG motor grader
  • Model Number:  road machine
  • Weight: 15400.000 kg

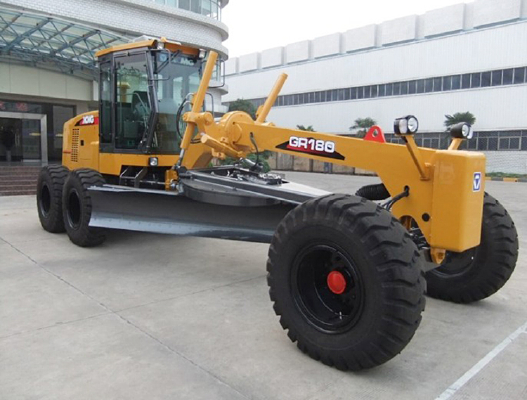

XCMG Official GR180 190HP new brand motor grader made in China with CE price for sale

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

[Advantages and Highlights]

1. Dongfeng Cummins Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.2. Double-circuit hydraulic brake system makes the brake more reliable and stable.3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.4. Use XCMG special enhanced work devices.5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.6.Various options expand the machine's performance and working range.


  • Place of Origin:  xuzhou
  • Brand Name:  XCMG motor grader
  • Model Number:  road machine
  • Weight: 15400.000 kg

Product Paramenters

Item

GR180

Basic parameters

Engine model

6CTA8.3-C190-Ⅱ

Rated power/speed

142kW/2200rpm

Overall dimension (standard)

8900x2625x3420

Total weight (standard)

15400 kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Tread

2156mm

Space of front and rear axles

6219 mm

Space of middle and rear wheels

1538 mm

Performance parameters

Forward velocity

5、8、11、19、23、38km/h

Reverse speed

5、11、23km/h

Tractive effort f=0.75

≥79 kN

Maximum gradeability

≥25%

Tire inflation pressure

260kPa

Working system pressure

18MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

±15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

3965x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Balancing box

46L

Drive axle

28L
