XCMG 21ton construction machinery XE215C crawler excavators for sale

XCMG 21ton construction machinery XE215C crawler excavators for sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao, Tianjin , Shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-11-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  9505/10100*3190*3120mm
  • Place of Origin:  xuzhou
  • Brand Name:  XCMG excavator
  • Model Number:  crawler excavators
  • Weight: 23920.000 kg

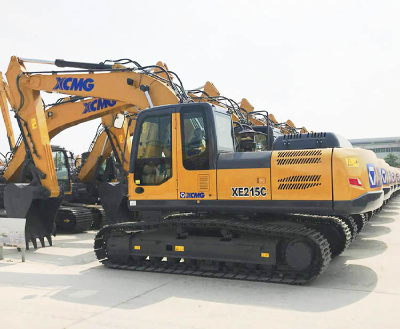

XCMG 21ton XE215C crawler excavator .

Main parameters:
Bucket capacity:0.93CBM (standard)
Operating weight:21450kgs
Max digging height:9640mm
Max digging reach: 9925mm

Main configuration
ISUZU CC-6BG1TRP engine
Hydraulic system

XCMG XE215C is the most popular model of China 21t excavator,Now XE215C is upgrading to new model equipped with EURO III engine with electric injector, new model will have high performance.

1,High-end configuration·Excellent performance

XE215C is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.

2,New generation·Environmental·Energy-saving·Large power engine

New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.

With independently developed intelligent study-type control system in XE215C series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE215C), which has the highest earthwork efficiency among similar models.



  • Size:  9505/10100*3190*3120mm
  • Place of Origin:  xuzhou
  • Brand Name:  XCMG excavator
  • Model Number:  crawler excavators
  • Weight: 23920.000 kg

Specification

Model

Parameters


Engine

Model

ISUZU CC-6BG1TRP

Equipped

Electronic fuel injection

Four strokes

Water cooling

Turbo-charging

Air to air intercooler

No. of cylinders

6

Output power

128.5/2100 kW/rpm

Torque/speed

637/1800 N.m/rpm

Displacement

6.494 L

Operation Weight

21700 kg

Bucket Capacity

0.9—1.0 m ³

Main performance

Travel speed(H/L)

5.5/3.3 km/h

Rotating speed

13.3 r/min

Gradeability

≤35°

Ground pressure

47.2 kPa

Bucket digging force

149 kN

Arm digging force

111 kN

Maximum traction

184 kN

Hydraulic system

Main pump

2 plunger pumps

Rated flow of main pump

2×209 L/min

Pressure of prime valve

34.3/37.0 Mpa

Pressure of travel system

34.3 Mpa

Pressure of swing system

28 Mpa

Pressure of pilot system

3.9 Mpa

Oil capacity

Fuel tank capacity

400 L

Hydraulic tank capacity

220 L

Engine oil capacity

25 L

Appearance size

Overall dimensions(L*W*H)

9625×2990×3100 mm

Width of platform

2830 mm

Length of crawler

4225 mm

Overall width of chassis

2990 mm

Width of chassis

600 mm

Track length on ground

3462 mm

Crawler gauge

2390 mm

Clearance under counterweight

1050 mm

Min. ground clearance

485 mm

Min. tail swing radius

2890 mm

Working scope

Max. digging height

9620 mm

Max. dumping height

6780 mm

Max. digging depth

6680 mm

Excavation depth of 8 feet level

6500 mm

Max. vertical wall digging depth

5715 mm

Max. digging reach

9940 mm

Min. swing radius

3530 mm

1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.

2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.

3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.

4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.

5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
