Product Description

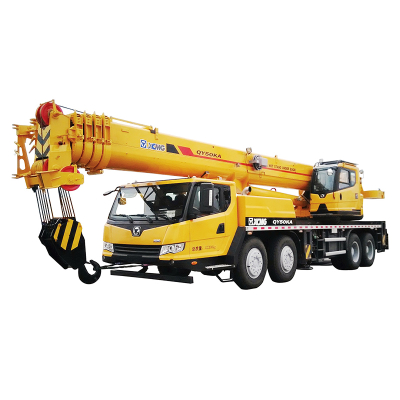

XCMG 50 ton Truck Crane QY50kA 50 ton Mobile Crane for sale
QY50KA 50 ton Truck Crane
Main specification:
* Max. rated total lifting capacity: 50T
* Fully extended boom: 42.7
* Fully extended boom jib: 57.7
* Engine model: WD615.334EuroIII
* Wire rope;Hirschmann PAT, Heater;A/C, Full dimension cab;5 Outriggers
1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
CONTACT INFORMATION
Emily Wang
Mobile/we chat:17865175775
Whatsapp: 8617865175775
Email :wangyq@makeronly.com
- Place of Origin: xuzhou
- Brand Name: XCMG truck crane
- Model Number: truck crane
- Weight: 50000.000 kg
Dimension | Unit | QY50KA |
Overall length | mm | 13750 |
Overall width | mm | 2800 |
Overall height | mm | 3520 |
Weight | ||
Total weight in travel | kg | 41000 |
Front axle load | kg | 15000 |
Rear axle load | kg | 26000 |
Power | ||
Engine model | WD615.334(domestic III) | |
Engine rated power | kW/(r/min) | 247/2200 |
Engine rated torque | N.m/(r/min) | 1350/1400 |
Travel | ||
Max. travel speed | km/h | 80 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 291 |
Approach angle | ° | 17 |
Departure angle | ° | 11 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | 45 |
Main performance | ||
Max. rated total lifting capacity | t | 50 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 3.482 |
Max. lifting torque | kN.m | 1764 |
Base boom | m | 11.3 |
Fully extended boom | m | 42.7 |
Fully extended boom jib | m | 57.7 |
Longitudinal outrigger span | m | 5.91 |
Lateral outrigger span | m | 6.9 |
Working speed | ||
Boom luffing time | s | 88 |
Boom full extension time | s | 180 |
Max. swing speed | r/min | ≥2.0 |
Max. speed of main winch (single rope) (no load) | m/min | ≥110 |
Max. speed of aux. winch (single rope) (no load) | m/min | ≥110 |
