- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Place of Origin: Shandong , china
- Brand Name: SHANTUI bulldozer
- Model Number: bulldozer
- Weight: 17000.000 kg

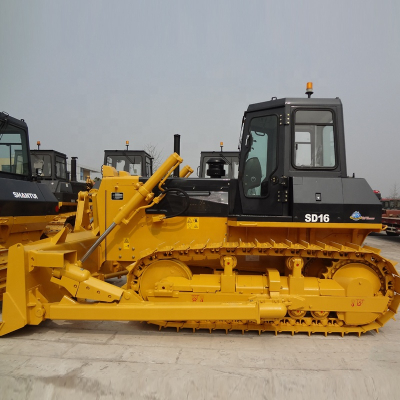

Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb Cummins engine for European markets and optional engines (Weichai and Shangchai) for other markets. The SD16 provides high performance with strong reliability, with Shantui’s trademark value.
SD16 hydraulic drive series bulldozer, which can meet the national III emission standard, features high technologic content, advanced and reasonable design,
strong power, high productivity, and easy maintenances and repairs and can adapt to severe working conditions. It's applicable for the bulldozing, digging, landfill,
and other bulk material operations on the roads, railways, mines, and airports and is an essential mechanical machine for the building constructions and water
conservancy constructions (such as national defense projects, mine constructions, and urban and rural roads).
SD16 Series
Shantui's top selling model. It comes in a variety of types to handle forest, swamp, highland, desert, power plant (coal), landfill and normal construction projects.
[Product Strengths]
[Applicable Working Conditions]
Bulldozing, digging, landfill, and other bulk operations.
[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.
[Our Advantage]
1. Multiple products: Various bulldozer series.
2. Favorable price: Factory outlet.
3. FShort delivery period: Factory outlet.
4. Flexible business terms: Supported by reliable insurance and financial platforms.
5. Perfect after-sales service: Global after-sales service network.
- Place of Origin: Shandong , china
- Brand Name: SHANTUI bulldozer
- Model Number: bulldozer
- Weight: 17000.000 kg
Performance Paramete
160 HP specifications: | Blade Type | Straight-tilt | Angle | U-Blade |
| Min. ground clearance: | 400 mm | 400 mm | 400 mm | |
| Ground pressure: | 0.072 MPa | 0.074 MPa | 0.074 MPa | |
| Min. turning radius: | 4.466 m | 4.513 m | 4.545 m | |
| Gradeability: | 30° | 30° | 30° | |
| Track gauge: | 1880 mm | 1880 mm | 1880 mm | |
| ENGINE | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct | ||
| Rated power | 120 kW | |||
| Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
| Piston displacement | 9.726 L | |||
| Min. fuel consumption | 214 g/kW·h | |||
| Maximum torque | 765 N·m@1300 rpm | |||
| POWER TRANSMISSION SYSTEM | Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Main drive | Spiral bevel gear, single stage speed reduction, splash lubrication | |||
| Steering clutch | Lubricated, multidisc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||
| Steering brake | Lubricated, floating band structure, foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
| Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
| UNDERCARRIAGE SYSTEM | Type | Sprayed beam, suspended structure of equalizer | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 6 each side | |||
| Track type | Assembled, single-grouser | |||
| Width of track shoes | 510 mm | |||
| Pitch | 203.2 mm | |||
| HYDRAULIC SYSTEM | Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge | 243 L/min | |||
| Bore of working cylinder × no. | 110 mm × 2 | |||
| BLADE | Blade type | Straight-tilt | Angle | U-blade |
| Dozing capacity | 4.5 m3 | 4.3 m3 | 5.0 m3 | |
Efficiency (Theoretical value 40 m) | 225 m3/h | 225 m3/h | 250 m3/h | |
| Blade width | 3388 mm | 3970 mm | 3556 mm | |
| Blade height | 1149 mm | 1040 mm | 1120 mm | |
| Maximum drop below ground | 540 mm | 540 mm | 530 mm | |
| Maximum tilt adjustment | 400 mm | – | 400 mm | |
RIPPER (OPTIONAL) | Maximum digging depth of 3-shank ripper | 572 mm | ||
| Weight of 3-shank ripper | 1667 kg | |||
| Maximum lift above ground | 592 mm | |||
1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
