- Place of Origin: shangdong ,china
- Brand Name: SHANTUI bulldozer
- Model Number: Bulldozer
- Weight: 37200.000 kg
Product Features

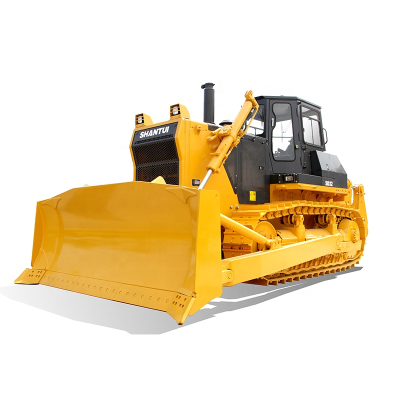

The SD32 provides a showcase for Shantui's prowess with high-efficiency push factors. These medium-sized,but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32 are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
Technical Features
Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available.
The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.
The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
Working Conditions
In various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc.
- Place of Origin: shangdong ,china
- Brand Name: SHANTUI bulldozer
- Model Number: Bulldozer
- Weight: 37200.000 kg
Parameter
| Engine | Model & type | Cummins NTA855-C360S10; In-line, water-cooled; 4-cycle, overhead valve direct injection, turbocharged diesel | ||
| Rated revolution | 2000 rpm | |||
| Horsepower | Gross power: 257/345/2000 kW/HP/rpm // Net power: 235/320/2000 kW/HP/rpm | |||
| Number of cylinders | 6—139.7 x 152.4 (mm x stroke) | |||
| Piston displacement | 14010 ml | |||
| Min. fuel consumption | 245 g/kW·h | |||
| Maximum torque | 1440 N·m@1400rpm | |||
Power transmission system | Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear, multi-disc clutch, power shift, forced lubrication | |||
| Main drive | Spiral bevel gear, splash lubrication, single-stage speed reduction | |||
| Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet, floating band, foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| Travel speed | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.6 km/h | 0~6.6 km/h | 0~11.5 km/h | |
| Reverse | 0~4.4 km/h | 0~7.8 km/h | 0~13.5 km/h | |
| Undercarriage system | Type | Swing type of sprayed beam, suspended structure of equalizer bar | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 7 each side (single flange 5, double flange 2) | |||
| Track type | 41 each side | |||
| Width of track shoes | 560 mm | |||
| Pitch | 228.6 mm | |||
| Hydraulic System | Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
Discharge (at revolution of 2000 rpm) | 355 (1795 rpm) L/min | |||
Bore of working cylinder × no. (double-acting type) | 140 mm × 2 | |||
| Blade | Blade Type | Straight-tilt | Angle | Semi-U blade |
| Dozing capacity | 10 m 3 | 6 m 3 | 11.9 m 3 | |
| Efficiency (Theoretical value 40 m) | 580 m 3 /h | 350 m 3 /h | 690 m 3 /h | |
| Blade width | 4130 mm | 5000 mm | 4130 mm | |
| Blade height | 1590 mm | 1140 mm | 1710 mm | |
| Maximum drop below ground | 560 mm | 630 mm | 560 mm | |
| Maximum tilt adjustment | 1000 mm | 500 mm | 1000 mm | |
| Weight of blade | 4520 kg | 4932 kg | 4924 kg | |
| Riipper (Optional) | Maximum digging depth of 3-shank ripper | 842 mm | ||
| Maximum lift above ground | 883 mm | |||
| Weight of 3-shank ripper | 3802 kg | |||
| Maximum digging depth of single ripper | 1250 mm | |||
| Maximum lift above ground | 965 mm | |||
| Weight of single ripper | 3252 kg | |||
1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
