- Place of Origin: xuzhou
- Brand Name: XCMG truck crane
- Model Number: Truck Crane
- Weight: 25000.000 kg

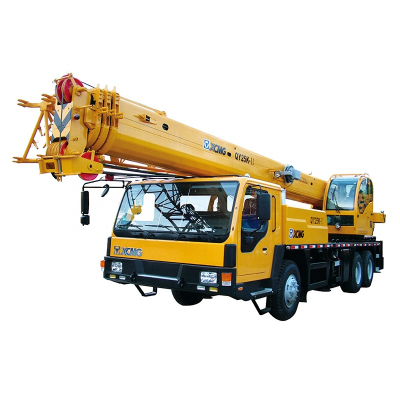

China XCMG 25ton Truck Crane QY25K5-II with high Quality
Adopt new environmental protection engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable. The layout of intake pipe is optimized to reduce intake resistance, increase intake and improve fuel efficiency.
Large space cab spacious and comfortable, more open view, new cab surrounded by shading shade; Optimize the three-stage shock absorption system to further improve seat comfort. Push and pull the Windows on both sides of the cab, greatly improve the operating comfort.
Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
Features
1.longer time warranty: one year,
2.package:sea protecting package with film not nude wether by container or not.
3.quality is strong with good steel body frame, brand component, technology is mature.
4.suitable design that the length size of forklift is longer because of the suitable driving space
5.lower price compare the same machines
6.service is satisfied with our after-sales team and engineering team
- Place of Origin: xuzhou
- Brand Name: XCMG truck crane
- Model Number: Truck Crane
- Weight: 25000.000 kg
Parameters of QY25K-II QY25K5-Ⅰ XCT25 Truck Crane
| Max. total rated lifting capacity | t | 25 | |
| Min. rated working radius | m | 3 | |
| Turning radius at turntable tail | mm | 3065 | |
| Max. load moment | Base boom | KN.m | 961 |
| Fully-extended boom | 533 | ||
| Fully-extended boom Jib | 451 | ||
| Outrigger span | Longitudinal | m | 6 |
| Lateral | 10.5 | ||
| Hoist height | Base boom | m | 10.5 |
| Fully-extended boom | 39.2 | ||
| Fully-extended boom Jib | 47.2 | ||
| Boom length | Base boom | m | 10.4 |
| Fully-extended boom | 39.5 | ||
| Fully-extended boom Jib | 47.8 | ||
| Jib offset angle | ° | 0, 15, 30 | |
| Time for boom raising | s | 68 | |
| Time for boom extending fully | s | 150 | |
| Max. slewing speed | r/min | 2.5 | |
| Overall length | mm | 12300 | |
| Overall width | mm | 2500 | |
| Overall Height | mm | 3350 | |
1. About our Company: QINGONG INTERNATIONAL GROUP(Shandong Makeronly Digital Technology Co.,Ltd.)was founded in 2008.We are a professional supplier specializing in construction machinery and hevry duty trucks ,such as wheel loaders,excavator, motor grader,road roller,truck crane and SINOTRUCKS . We have been exporting more than 10 years.
2. About our Products: Our products are specially for global export market, with advanced configuration, good quality spare parts, streamlined and beauty appearance. The engine brand, transmission systems, electrical systems, axle, seals and many others are all choose in good quality famous brand supplier. In addition, our machine have very good finshing quality, because of our experienced engineers and workers, you can visit our factory to check all the details.
3. About our Delivery time: Our normally delivery time is within 15 working days, while most of the time, we could finish them in advance. In addition, some products are in storage of our factory, so urgent order will also be accepted.
4. About our Shippment: Factory direct delivery :Very careful preshipment inspection, then packing, then shipping. Our goal is solving the problems in factory, then you can trustworthy use.
5. About our after-sales service: Our factory provide 1 year warranty for our machines, and will take responsibility for the whole life. For maintenance spare parts, we promise to send to you replacement parts within 7 work days.
